Brake Pedals & Cylinders
|
No.
|
Description
|
Notes
|
Part No.
|
|
Brake pedal
|
- RHD to '90 (non servo type)
|
||
|
|
Brake pedal
|
- RHD '90 on
|
|
|
Bronze Bush - brake pedal
|
RHD
|
||
|
|
Plastic Bush - brake pedal
|
LHD
|
|
|
|
Brake Pedal tube assembly
|
- LHD '90on
|
|
|
Pedal Box assembly,
|
- RHD '88 - '96
|
||
|
|
Pedal Box assembly,
|
- LHD '88 - '96
|
|
|
3
|
Pedal Box assembly,
|
- RHD '97 on
|
|
|
|
Pedal Box assembly,
|
- LHD '97 on
|
|
|
Pivot shaft brake/clutch pedal
|
RHD
|
||
|
|
Pivot shaft brake/clutch pedal
|
LHD
|
|
|
Nyloc nut for 2A5580
|
|
||
|
Clevis Pin - pedal to master cylinder
|
|
||
|
Return spring
|
- '59-'88
|
||
|
|
Return spring
|
- LHD '88on
|
|
|
Set Screw - bracket to body
|
|
||
|
Spring Washer - screw bracket to body
|
|
||
|
Brake/Clutch pedal rubber
|
- up to '76
|
||
|
10
|
Brake/Clutch pedal rubber,
|
- '76 - '90
|
|
|
10
|
Brake/Clutch pedal rubber,
|
- '90 on
|
|
|
Bracket - stoplight switch,
|
- RHD '88 - '94 (carb)
|
||
|
11
|
Bracket - stoplight switch,
|
- RHD '91on (Injection)
|
|
|
Nut - stoplight bracket
|
|
||
|
Washer - stoplight bracket
|
|
||
|
Rubber Boot - servo control arm
|
|
||
|
Pivot Bracket - brake pedal
|
LHD '89on
|
||
|
Flanged Nut - M8
|
|
||
|
Brake pedal return spring,
|
- RHD '88on
|
||
|
Bracket - stoplight switch,
|
- LHD '91on (Injection)
|
||
|
19
|
Bracket - stoplight switch,
|
- LHD '88 - '94 (carb)
|
|
|
Nut - stoplight bracket to pedal box
|
|
||
|
Washer - stoplight bracket to pedal box
|
|
||
|
Brake light switch,
|
- '76 on
|
||
|
Return Spring - crank to servo bracket
|
|
||
|
Brake pedal crank assembly,
|
- '88 on
|
||
|
Pivot shaft - pedal crank assembly
|
|
||
|
Plastic insert for crank assembly
|
|
||
|
Clevis pin - crank to servo
|
|
||
|
Split pin for NAM8540
|
|
||
|
Bracket - servo mounting
|
|
|

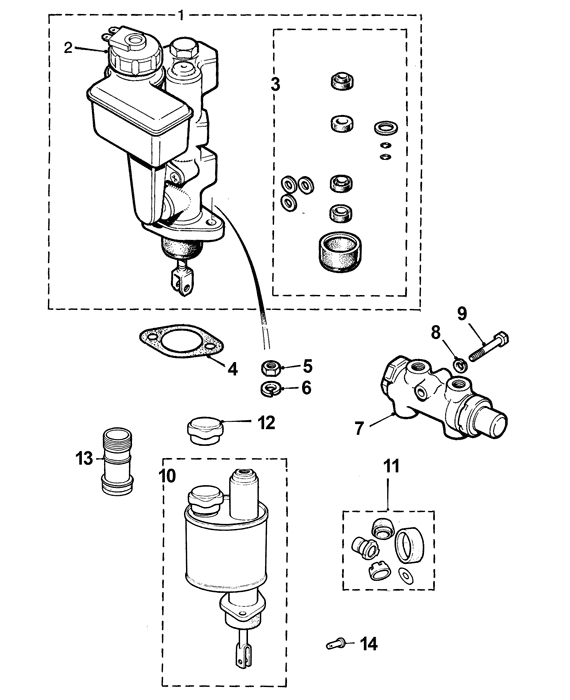

No.
|
Description
|
Notes
|
Part No.
|
|
Yellow tag, '85 on (front/rear split) pre servo
|
|
||
|
1
|
Master Cylinder - Green tag, with servo
|
- '89 on
|
|
|
1
|
Conversion Kit - to fit a GMC227 master cylinder to all pre
|
|
|
|
85 Mini with front rear split brake system. Original master cylinders are no longer available - GMC159 & GMC160
|
|
||
|
Cap includes Switch for GMC227 / GMC90376
|
|
||
|
Repair kit
|
GMC167
|
||
|
3
|
Repair kit
|
GMC195
|
|
|
3
|
Repair kit
|
GMC159/160
|
|
|
3
|
Seal repair kit
|
GMC227
|
|
|
3
|
Seal repair kit
|
GMC90388
|
|
|
|
Master Cylinder - Square reservoir for split diagonal
|
|
|
|
Master cylinder gaskets (dual line)
|
|
||
|
4
|
Master cylinder gaskets (single line)
|
|
|
|
Nut - cylinder to bracket
|
|
||
|
Spring Washer - cylinder to bracket
|
|
||
|
Limiter valve, bulkhead fitment
|
'78 on
|
||
|
Washer-spring-bolt
|
|
||
|
Bolt-valve to dash member
|
|
||
|
|
Master Cylinder - Standard, plastic tank type
|
- pre '76
|
|
|
Master Cylinder - tin tank type
|
Cooper S/GT
|
||
|
10
|
Master Cylinder - Standard, Tin tank type
|
- pre '76
|
|
|
Repair kit (2 x ring seals)
|
GMC171/172
|
||
|
11
|
Repair kit (1 x ring, 1 x cup seal)
|
early GMC171/172
|
|
|
Brake & Clutch Master Cylinder Cap for GMC171/172
|
|
||
|
Reservoir extension - white plastic (tin tank only)
|
|
||
|
Clevis Pin - master cylinder to pedal
|
|
