Camshaft Duplex Timing Gear

Name: Camshaft Duplex Timing Gear
SKU: 12G1397
Price: 24.000001 GBP
Availability: InStock

£24.00 £20.00

In stock

SKU

12G1397

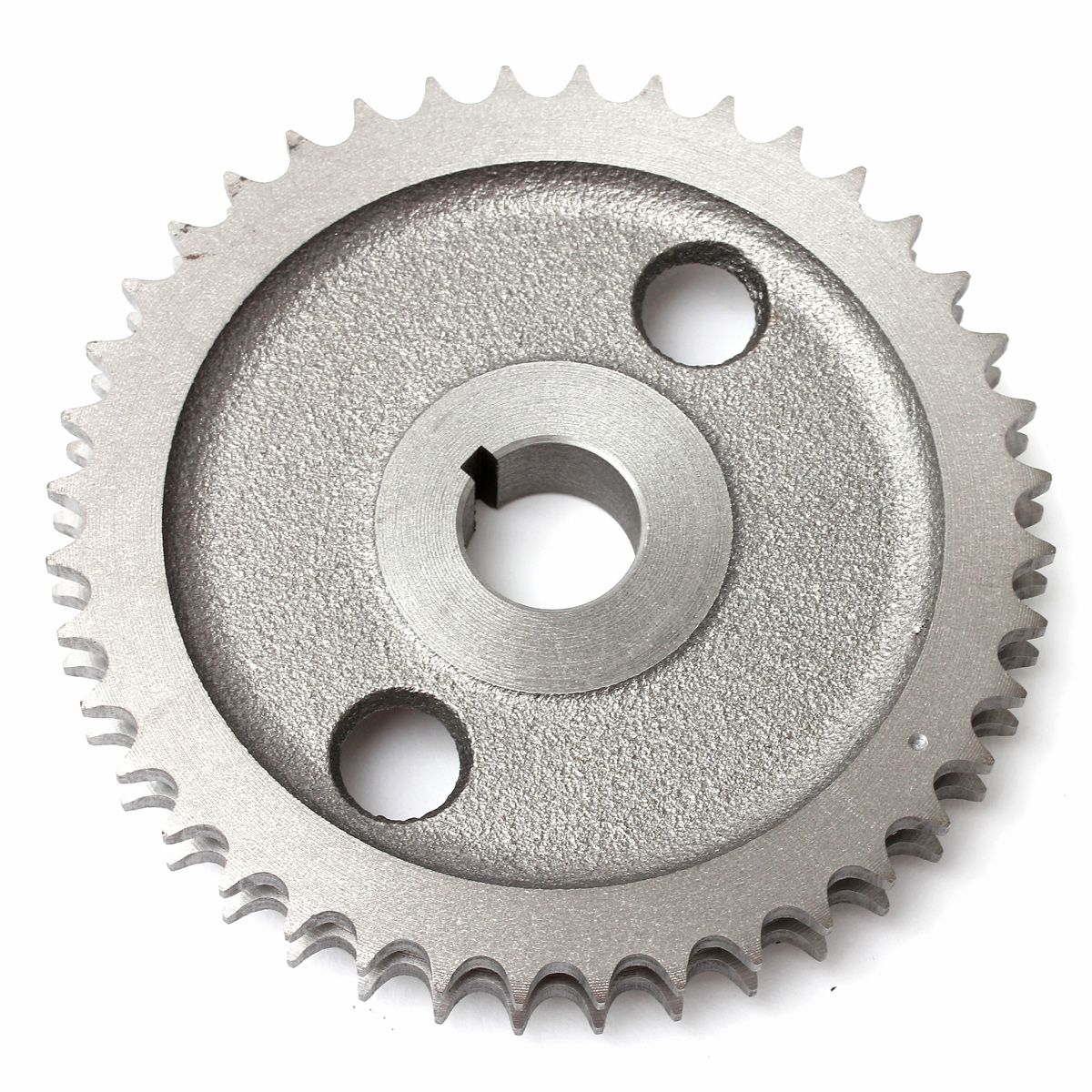

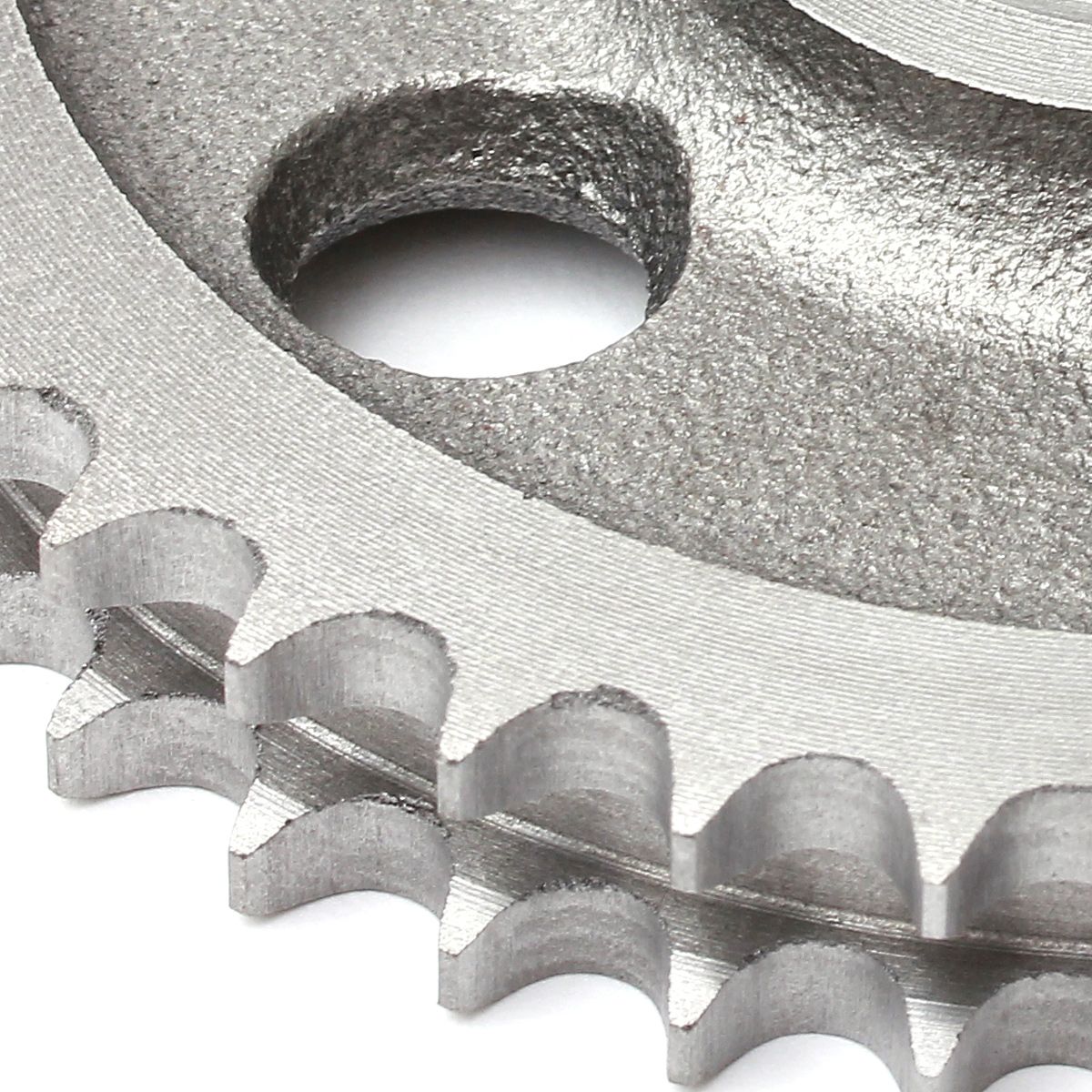

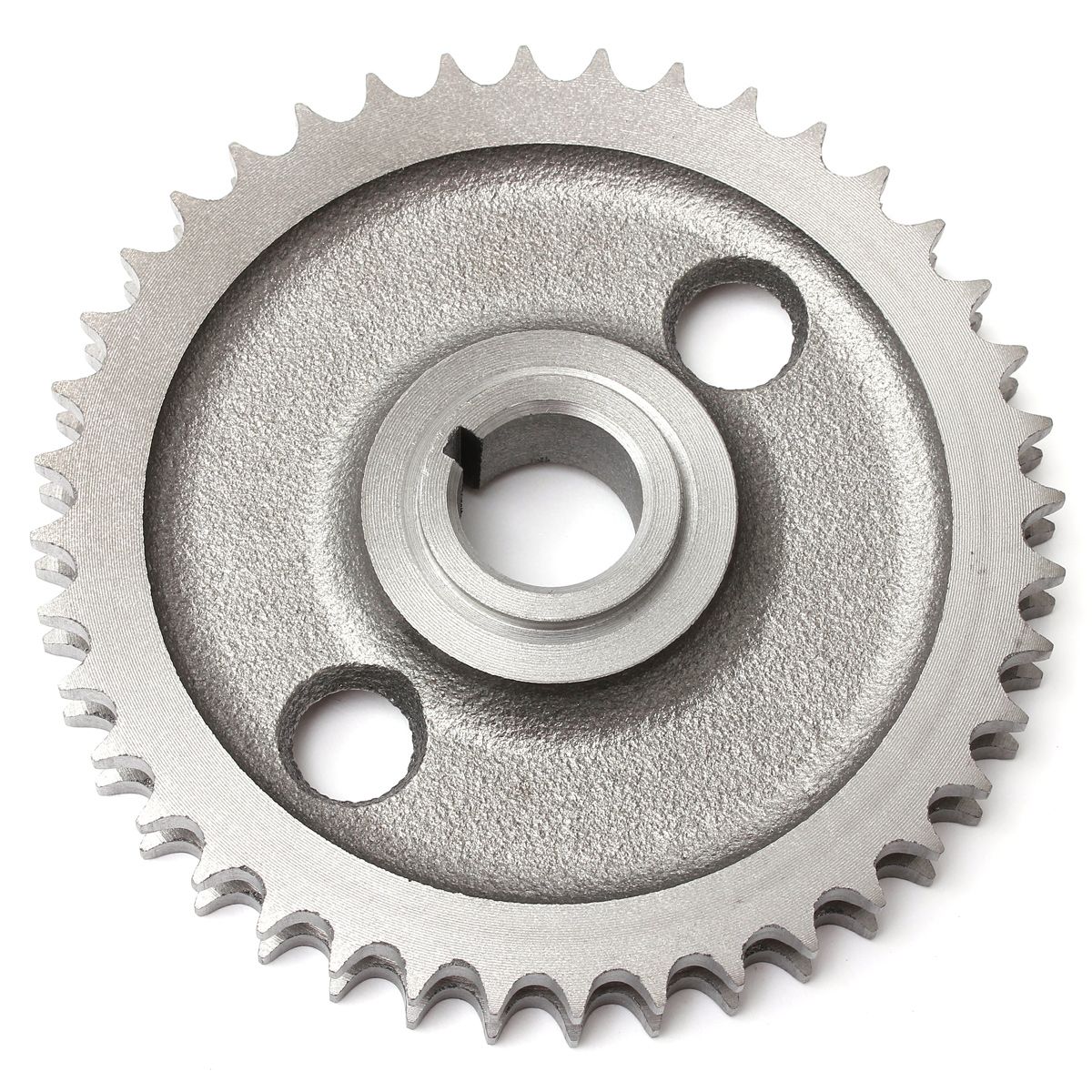

Camshaft duplex timing gear

Frequently Bought Together

Details

Camshaft Duplex Timing Gear

No.

Description

Notes

Part No.

1	Engine front bearer plate	A +	12G2626
2	Gasket - front plate	A series	12G619B
2	Gasket - front plate	A +	GUG705554GM
3	Set Screw - front plate to bearing cap	Simplex gears	53K2016
3	Set Screw - front plate to bearing cap	Duplex gears	CMZ407
4	Washer		GHF321
5	Camshaft locating plate		TAM2014
6	Set Screw - front plate to crankcase		GHF117
7	Shakeproof Washer		GHF321
8	Simplex Camshaft Gear		12G4337
8	Duplex Camshaft Gear		12G1397
9	Woodruff Key - camshaft gear		WKN505
10	Lock Washer - camshaft		2A759
11	Nut - camshaft		6K629
12	Simplex Timing Chain		3H2127
	Duplex Timing Chain		2H4905
13	Chain Tensioner Pad		12G2621OE
14	Pivot Pin - chain tensioner		12G2629
15	Mounting Plate - chain tensioner		12G2628
16	Set Screw - tensioner bracket to crankcase		GHF120
17	Spring Washer		GFK1125
18	Washer		GFK1114
19	Timing cover 1275cc - (with oil separator)	'90 on	LJR10168
20	Oil Seal - timing cover		88G561
	Oil Seal - timing cover		88G561OE
21	Timing cover gasket - 10 bolt	A Series	12A956B
21	Timing cover gasket - 11 bolt	A+	12G2625
22	Set Screw - timing cover to plate		SH604031
23	Washer		WC106041
24	Spring Washer		GFK1124
25	Set Screw - timing cover, plate, crankcase		GHF120
26	Spring Washer		GFK1125
27	Washer		GFK1114
28	Set Screw - timing cover to plate		GHF120
30	Spring Washer		GFK1125
31	Washer		GFK1114
29	Nut - cover to front plate		GHF201

More Information
SKU	12G1397
Manufacturer	OE Spec
Cross Reference Product Codes	12G1397
