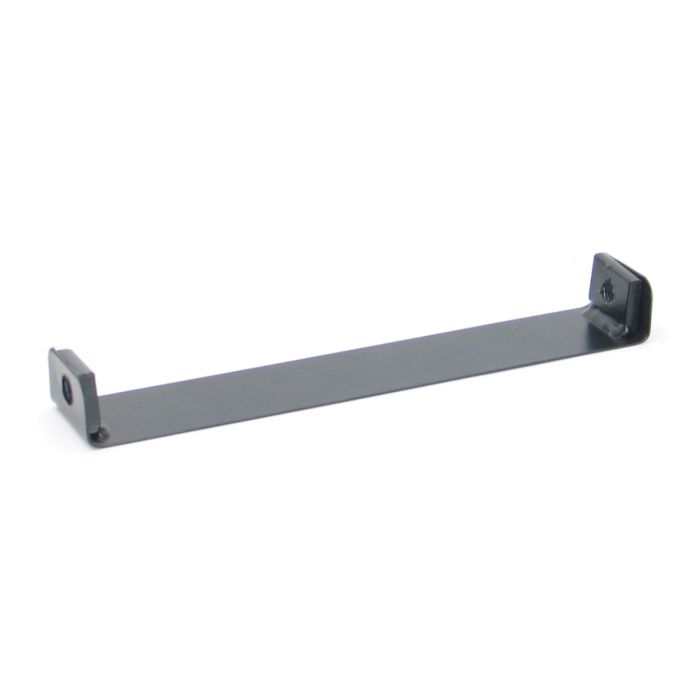

Fuel Tank Strap - RH - Short

Name: Fuel Tank Strap - RH - Short
SKU: 2A2231
Price: 13.572001 GBP
Availability: InStock

Be the first to review this product

Special Price £13.57 £11.31 Regular Price £14.33

In stock

SKU

2A2231

Fuel tank strap - rh - short

Frequently Bought Together

Fuel Tank Strap - RH - Short
Special Price £13.57 £11.31 Regular Price £14.33
Fuel Tank Strap - RH - Long
£10.20 £8.50

Details

The short strap as fitted to the right hand 5.5 gallon fuel tank.

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	7.5 gallon fuel tank Mini carb models '74-'90	LH	ARP1043
1	Injection fuel tank	LH	WFE106090
1	5.0 gallon fuel tank - steel	RH	21A2183
1	Van, Traveller, Pick-up fuel tank		21A291
2	Seal - tank - filler neck		2A2069
22	Fuel tank rubber neck grommet - to '96		14A7057
22	Fuel tank rubber neck grommet - MPi		WGG100010
17	Short tank strap		2A2231
17	Long tank strap		2A2226
	One Piece Tank Strap (diagonal fitment) - 7.5 Gal tank		21A2838
3	Van/estate sender unit		AAU8340
3	Carb type fuel sender unit		XNB10007
3	Injection fuel sender unit ('92-'01)		XNB100380
4	Mini Injection Fuel Pump - SPi and MPi		WFX100810
5	Seal - fuel pump to tank - SPi and MPi		EDP9317
6	Locking Ring for Fuel Tank Sender Unit		ARA1501
7	Sealing rubber ring for 7.5 gallon tanks		ARA1502
7	Cork Gasket for AAU8340		GUG705711GM
	Screws for Van Tank sender unit (6 required)		53K165
2	Seal - tank - filler neck		2A2069
8	Filler Cap Assembly - Non Locking - Black		WLD10027
8	Filler Cap Assembly - Non Locking - Chrome		WLD100350
9	Washer - Sealing		21A2109
10	Filler Cap Assembly - Locking - Chrome		WLD100660
11	Washer - sealing		21A2109
12	Pipe - vent - fuel tank (765mm long approx)		CRC7575
18	Screw - retaining - tank strap to floor		GHF120
	Nut - retainer - tank strap to floor		346071A
	Setscrew - 5/16" UNF - tank strap to bracket		13H7583
19	Washer - spring		GFK1125
20	Screw		SH605161
21	Washer - spring		GFK1125
23	Pipe - pump to tank - 233.6cm(92")	1m of Fuel Hose	37H6844M
24	Sleeve - pipe		WZV10002
25	Hose - tank to pipe - 290mm	1m of Fuel Hose	37H6844M
26	Feed hose - tank to underfloor pipe	1m of Fuel Hose	37H6844M
	Injection Fuel Filter - to VIN WD169573		GFE7059
	Injection Fuel Filter - to VIN WD169574		WJN101192
	Fuel Filter Bracket - SPi and MPi		WJU10142
	Fuel Filter Bracket - SPi and MPi - Stainless Steel		SMB160
	Fuel Filter Bracket - SPi and MPi - Powder Coated		SMB161
16	RH Fuel Tank connecting Pipe		21A2331

More Information

More Information
SKU	2A2231
Manufacturer	Mini Machine
Cross Reference Product Codes	2A2231
