Bolt - Clutch Drive Strap - pre Verto

Name: Bolt - Clutch Drive Strap - pre Verto
SKU: 2A3659OE
Price: 3.816001 GBP
Availability: InStock

Special Price £3.82 £3.18 Regular Price £4.00

In stock

SKU

2A3659OE

Bolt - clutch drive strap - pre verto

Frequently Bought Together

Bolt - Clutch Drive Strap - pre Verto
Special Price £3.82 £3.18 Regular Price £4.00
Lock Tab - clutch strap pre verto
Special Price £3.16 £2.63 Regular Price £3.34

Details

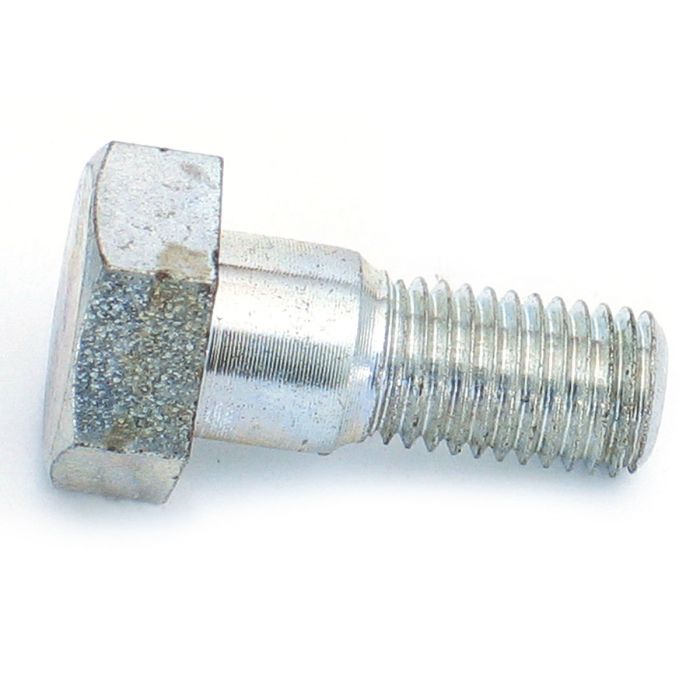

5/16" shoulder type bolt used for the the clutch steel drive straps on early pre Verto type clutches.

Sold as each.

No.

Description

Notes

Part No.

1	Lightened original cast pressure plate - exchange		MS2222
1a	Lightened steel pressure plate by Mini Sport		C-AHT230
2	Pre Verto Standard type (all models up to 1990)		GCP204AF
2a	AP Racing organic rigid centre, fast road high tourque		C-AHT596
2b	AP Racing Cerametallic (4 paddle) rigid centre, competition only - Torque capacity 161nm		C-AHT598
2c	6 Paddle Cerametallic ridgid centre, road/competition		CGM46MINI6PADDLE
3	Clutch cover - blue/green - standard		GCC103
3a	Fast road & rally cover - orange		C-AEG481
3b	Competition cover - grey		C-AEG482
4	Washer 3/8"		GFK1115
5	Clutch strap, each		2A3658
6	Lock Tab		2A3512
7	Bolt - strap to flywheel, each		2A3659OE
8	Clutch arm plunger - pre verto		22A180
9	Plunger Stop Nut		22A427
10	Plunger Lock Nut		NT610041
11	Release Bearing - Tall type	- '64-'82	GRB238
12	Shakeproof Washer		GHF323
13	Bolt - clutch cover to pressure plate		2A3657OE
14	Flywheel A+/ A series, reconditioned, lightened & balanced		MS2223
	Flywheel - Inertia type	(4.028kg)	C-AEG619
	Flywheel - Pre engaged type	(4.028kg)	C-AEG620
	Flywheel - Inertia type	(4.154kg)	C-AEG621
	Flywheel - Pre engaged type	(4.154kg)	C-AEG622
	Flywheel - Inertia type	(4.432kg)	C-AEG623
	Flywheel - Pre engaged type	(4.432kg)	C-AEG624
15	Inertia type Ring Gear - narrow		A10710R
15a	Inertia type Ring Gear - wide		B10710R
16	Flywheel Keyplate	pre Verto 1959-82	MS2223
17	Flywheel Bolt Locktab	pre Verto 1959-82	MS2223
18	Flywheel Bolt	pre Verto 1959-82	MS2223

No.

Description

Notes

Part No.

1	Lightened original cast pressure plate - exchange		MS2222
1a	Lightened steel pressure plate by Mini Sport		C-AHT230
2	Pre Verto Standard type (all models up to 1990)		GCP204AF
2a	AP Racing organic rigid centre, fast road high tourque		C-AHT596
2b	AP Racing Cerametallic (4 paddle) rigid centre, competition only - Torque capacity 161nm		C-AHT598
2c	6 Paddle Cerametallic ridgid centre, road/competition		CGM46MINI6PADDLE
3	Clutch cover - blue/green - standard		GCC103
3a	Fast road & rally cover - orange		C-AEG481
3b	Competition cover - grey		C-AEG482
4	Washer 3/8"		GFK1115
5	Clutch strap, each		2A3658
6	Lock Tab		2A3512
7	Bolt - strap to flywheel, each		2A3659OE
8	Clutch arm plunger - pre verto		22A180
9	Plunger Stop Nut		22A427
10	Plunger Lock Nut		NT610041
11	Release Bearing - Tall type	- '64-'82	GRB238
12	Shakeproof Washer		GHF323
13	Bolt - clutch cover to pressure plate		2A3657OE
14	Flywheel A+/ A series, reconditioned, lightened & balanced		MS2223
	Flywheel - Inertia type	(4.028kg)	C-AEG619
	Flywheel - Pre engaged type	(4.028kg)	C-AEG620
	Flywheel - Inertia type	(4.154kg)	C-AEG621
	Flywheel - Pre engaged type	(4.154kg)	C-AEG622
	Flywheel - Inertia type	(4.432kg)	C-AEG623
	Flywheel - Pre engaged type	(4.432kg)	C-AEG624
15	Inertia type Ring Gear - narrow		A10710R
15a	Inertia type Ring Gear - wide		B10710R

No.

Description

Notes

Part No.

1	Rubber O Ring Seal	Verto Clutch Release Bearing	AAU2866
2	Clutch Release Bearing	Verto 1982-2001	GRB239
3	Clutch Release Plunger	Verto 1982-2001	DAM5353
4	Clutch Plunger Stop Nut	pre Verto 1959-82	22A427
5	Clutch Plunger Lock Nut	pre Verto 1959-82	NT610041
6	Flywheel Keyplate	Verto 1982-2001	DAM5923
7	Flywheel Bolt	Verto 1982-2001	DAM5922
8	Clutch Release Bearing Thrust Sleeve	Verto	AHU1564
9	Lock Washer	Clutch Diaphragm Bolt - Verto	BAU2320
10			MS2223V
11	Clutch Plate	Verto - 180mm	GCP271AF

More Information
SKU	2A3659OE
Clutch Type	Pre Verto
Manufacturer	OE Spec
Cross Reference Product Codes	C-2A3659
