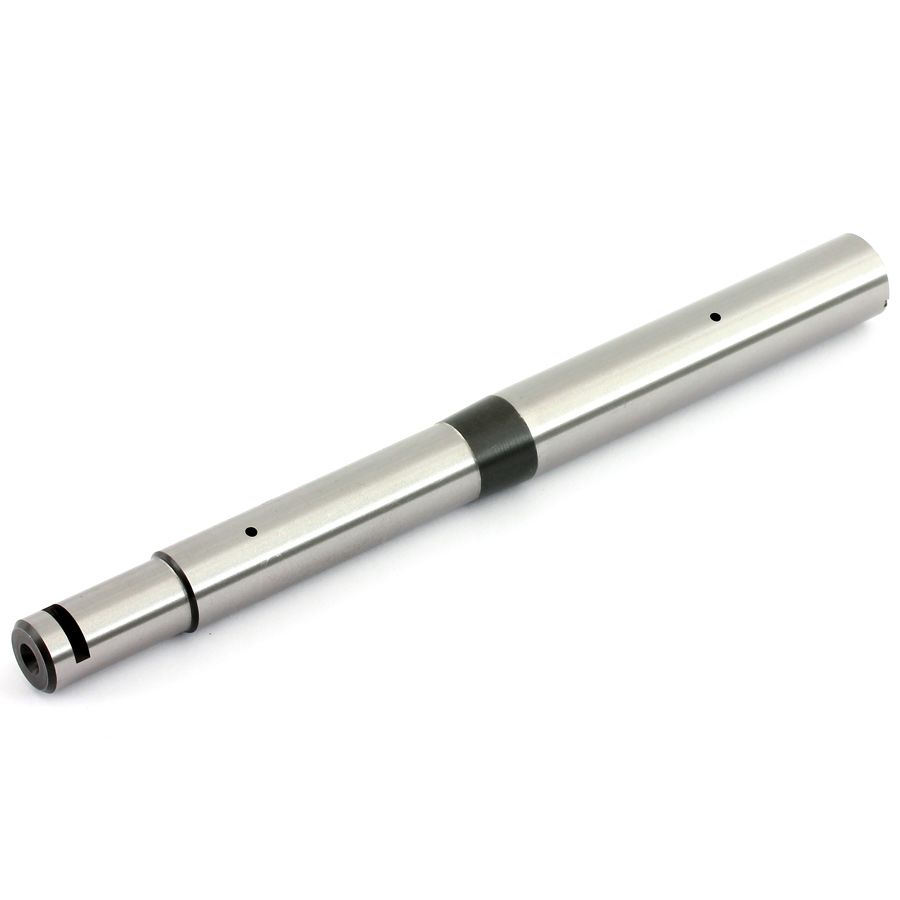

Layshaft - 4 Synchro - Competition - A+ Series

Name: Layshaft - 4 Synchro - Competition - A+ Series
SKU: C-22A1739
Price: 30.120001 GBP
Availability: InStock

Be the first to review this product

£30.12 £25.10

In stock

SKU

C-22A1739

EN36 hardened Layshaft for Mini A+ 4 syncromesh gearboxes

Frequently Bought Together

Layshaft - 4 Synchro - Competition - A+ Series
£30.12 £25.10
Laygear Needle Roller Bearing - Large - 4 synchro
£6.79 £5.66
1st Motion Roller Support Bearing
£17.64 £14.70
Gasket - A+ Plus Timing Cover
£2.26 £1.88

Details

Upgraded EN36 layshaft for all 4 syncro mesh Mini A+ gearboxes ideal for competition use, can be used with either straight cut of helical standard type gears.

For standard type please use

DAM3187 - A+ Layshaft, Mini 4 syncro

Other parts you may require

MS4017 - A+ Mini gearbox full reconditioning kit
MS4016 - A+ Mini gearbox full bearing kit
CHM141 - Needle roller bearing for Mini Layshaft
13H9513 - Needle roller bearing Mini A+ Layshaft
MS4014R - 4 syncro A+ gear kit
22G856 - Layshaft thrust washer (0.123"-0.124") small end (other sizes available)
22G860 - Layshaft thrust washer - big end

Buy Mini gearbox spares and parts from Mini Sport, the worlds premier online Mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	1st Motion Shaft / 4th Gear	A series	22G1093
1	1st Motion Shaft / 4th Gear	- A +	DAM4930
	Nut	- 1st Motion Shaft	2A3548
	Lock Tab	- 1st Motion Nut	DAM4000
2	14mm 1st motion needle roller bearing		88G409
3	Bearing - 1st motion shaft	Large	ADU7619
4	Circlip	- 1st Motion shaft bearing	22G850
5	Layshaft	- 3 synchro	22A1371
5	Layshaft	- 4 synchro - A series	22G931
5	Layshaft	- A+	DAM3187

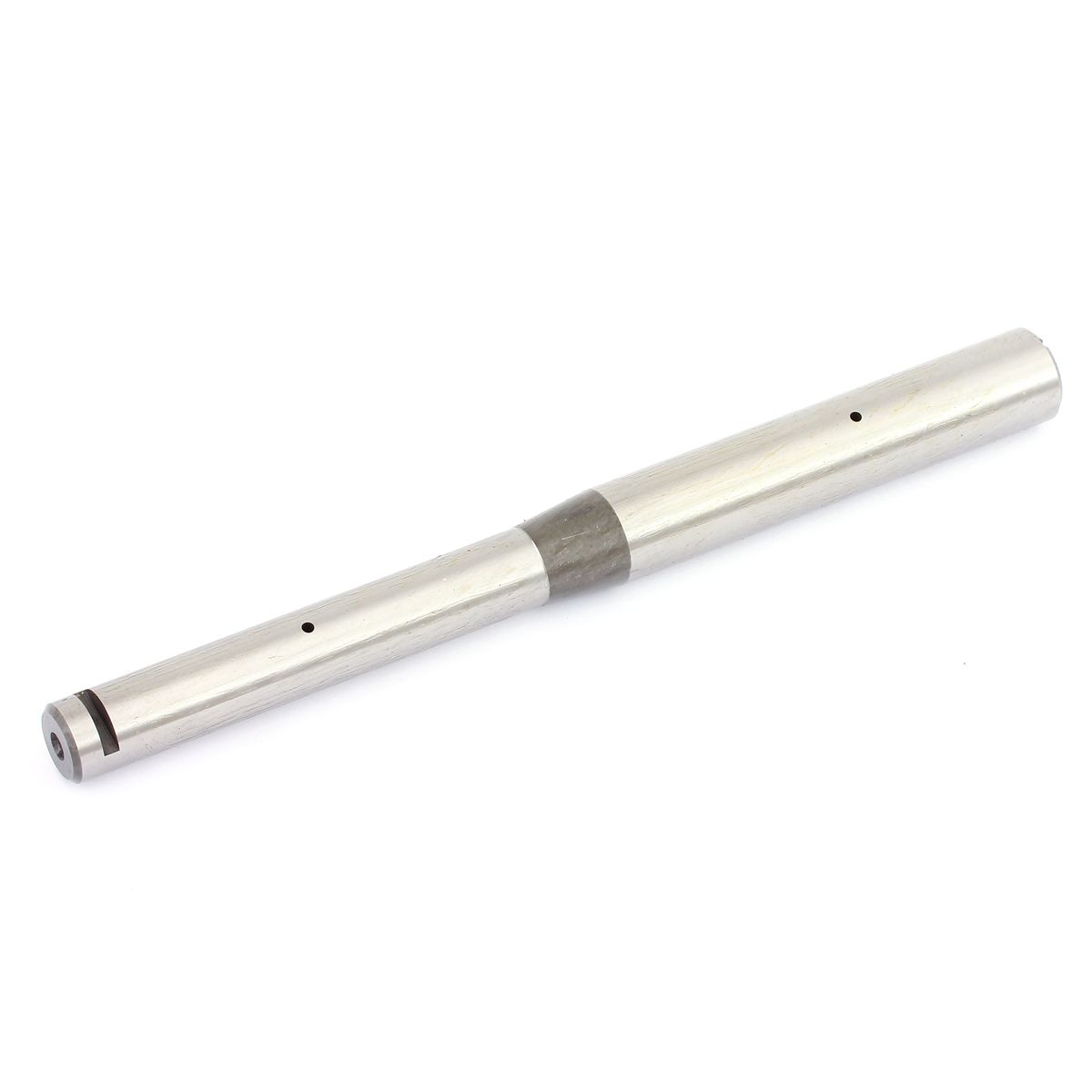

5	Layshaft Competition	A series	C-22A1738
5	Layshaft Competition	- A +	C-22A1739
6	Laygear	- 3 synchro - Cooper S	22G1100
6	Laygear	- 4 synchro - A series	22G927
6	Laygear	- A+	DAM4931
2/7	18mm 1st motion/layshaft needle roller bearing		13H9513
7	16mm layshaft needle roller bearing		88G396
8	20mm layshaft needle roller bearing		CHM141
9	Thrust Washer	- Layshaft (.124"-.126") A+	DAM3181
9	Thrust Washer	- Layshaft (.130"-.132") A+	DAM3183
10	Thrust Washer	Laygear	22G860
11	Reverse idler	Rod change type	TUB10020
12	Bush	Reverse Idler Gear	TUJ10001
13	Shaft	Reverse Idler Gear	DAM8038
14	3rd Motion Shaft	- A series - 4 synchro	22G833
14	3rd Motion Shaft	- A +	DAM7484
15	Baulk Ring		22G2033
15	Baulk Ring	Genuine	22G2033GEN
16	Sycronizer	- 3rd & 4th gear	DAM7456
17	Ball	Syncronizer	BLS107
18	Spring	Syncronizer	DAM7391
19	3rd gear	A series	22G1095
19	3rd gear	- A +	DAM4933
20	2nd/3rd gear needle roller bearing		AAU1816
21	Thrust washer	- 3rd Gear	22G947
22	Peg - locking - 2nd/ 3rd gear	all	22G843
23	Spring - locking peg	- 3rd Motion Shaft	22G154
24	2nd gear	- A+	DAM4932
26	Thrust washer	- 2nd Gear	22G839
27	Sycronizer	- 1st & 2nd gear	DAM7455
28	1st gear	- A series and A+	22G1096
29	1st gear needle roller bearing		AAU1815
30	Journal	- 1st gear	22G837
31	Bearing - 65mm double	- 3rd motion shaft	AAU1365
32	Spring Ring	- 3rd Motion Bearing retainer	ADU4992
33	Shim	- 3rd Motion Bearing retainer (.003")	GUG705645GM
34	Locating Plate	- 3rd Motion Bearing retainer	2A3581
35	Bearing retainer	- 3rd Motion - rod change	22G2726
36	Lock Tab	- 3rd Motion Bearing retainer	DAM2377
37	Bolt	- 3rd Motion Bearing retainer	SH505071
39	Lock Tab Washer	Final Drive Pinion	DAM6140
40	Nut	- 3rd Motion Shaft - A+	DAM7485

More Information

More Information
SKU	C-22A1739
Manufacturer	OE Spec
Cross Reference Product Codes	C-22A1739
