SKU
FAM2390A

Front Hubs - Lightweight Alloy - all Disc Type Minis

Special Price £568.58 £473.82 Regular Price £653.40
In stock
SKU
FAM2390A

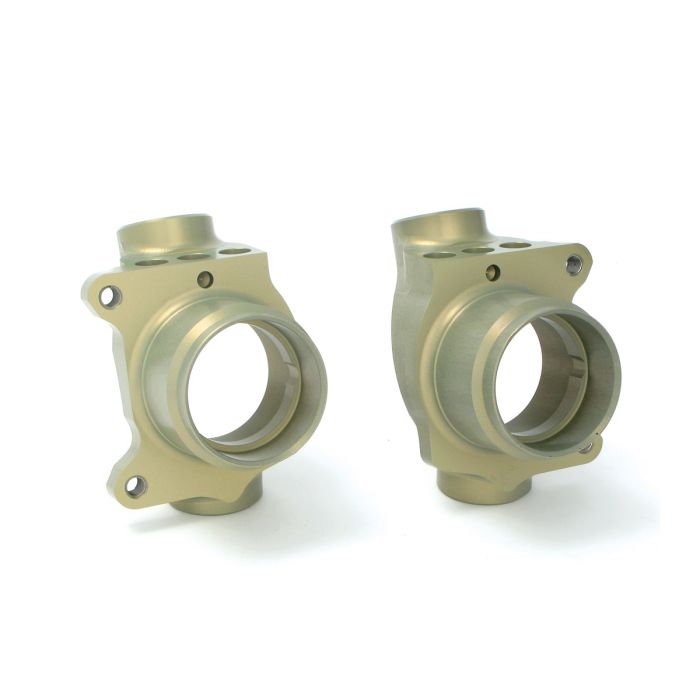

Mini lightweight alloy front hubs for all disc brake Minis

Details

A pair of specially designed aluminium Mini swivel hubs. Developed by the Mini Sport Engineering Department, using the latest CAD-CAM machinery, to be as strong and as light as possible.

This exceptional piece of design and engineering is an exclusive Mini Sport product. Created for Race, Hill Climb and Sprint Cars where absolutely every gram of weight which can be lost, is of the utmost importance and top priority.

Machined by our own in house CNC equipment from a 7075 aircraft grade high specification aluminium billet, then hard anodised. These specially designed Mini Sport swivel hubs are not only strong and durable but over 1kg lighter than the standard cast swivel hub!

Designed for maximum strength, these swivel hubs use a modified 3 bolt steering arm and uprated heavy duty sealed ball joints. These alloy swivel hubs are ideally suited to be fitted with the Mini Sport alloy 4 pot caliper kit and the rear alloy hub. This combination will give a significant weight loss on your competition mini whilst improving the braking efficiency and characteristics over the standard brake setup.

Weight of standard cast swivel hub - 1.73kg each

Weight of Mini Sport Alloy swivel hub - 0.71kg each

Please note - this is for a pair of bare alloy hubs only. For the complete kit, including ball joints etc, see FAM2390AKIT.

Buy top quality standard and uprated Mini suspension parts from Mini Sport, the world's premier online Mini store!

Find all related parts with our Easy Parts Finder


No.
Description
Notes
Part No.
1
Standard rubber cone - front & rear

1
Competition rubber cone - front & rear

1
Moulton Smootha Ride front cone

1
Moulton Smootha Ride rear cone

2
Aluminium front strut, each

2
Adjusta Ride front struts, pair

Adjusta Ride full car kit

3
Knuckle joint - standard, each

3
Knuckle joint - Adjusta Ride, each

4
Knuckle joint nylon cup, each

5
Genuine tie rod (inc bushes),
each
5
Adjustable tie rods - thick, pair

5
Group 'A' Adjustable tie rods, pair suitable for road, rally or race

5
Group 'A' rose jointed tie rods, pair suitable for tarmac rally or race


Female Rose Joint 1/2" UNF, each


Teflon 1/2"UNF female rose joint


Male Rose Joint 1/2" UNF, each


Teflon 1/2"UNF male rose joint

6
Bolt - tie rod to bottom arm,
each
7
Spring Washer - 5/16" UNF Spring washer,
each
8
Nut - Nyloc 5/16'UNF
each
9
Standard rubber bushes
each
9
Uprated rubber bushes
set 4
9
Poly bush kit (black or red)
set 4
10
Washer - cup type, tie rod end
each
11
Washer - flat, tie rod end
each
12
Nyloc nut - 7/16"UNF tie rod
each
13
Shock Absorbers
each or kits
13a
Rubber eyelet bush (with insert),
each
14
Top standard mount, LH,
each
14
Top standard mount, RH,
each
14
Top competition mount, RH,
each
14
Top competition mount, LH,
each
15
Set Screw - 1/4" UNF x 3/4"
each
16
Spring Washer - 1/4"
each
17
Front Shock Absorber Bottom Mount,
each
17
Lower competition pin
each
18
Nut - Nyloc 3/8"UNF shocker mount
each
19
Bump Stop - rubber twin bolt
each
19
Bump Stop - rubber single bolt
each
19
Bump Stop - rubber hydrolastic type
each
19
Bump Stop - rubber single bolt - early MK1
each
19
Bump Stop - poly single bolt
pair
19
Bump Stop - poly twin bolt
pair
20
Nut - 1/4" UNF

20
Nut - nyloc 1/4"UNF

21
Spring Washer - 1/4"

21
Washer - flat 1/4Ó

22
Repair kit, all parts to service 1 x top arm

23
Top arm shaft
each
24
Sealing Ring bush - top arm shaft
each
25
Thrust washer - top arm shaft
each
26
Thrust collar - top arm shaft
each
27
Retaining plate - top arm shaft
each
28
Spring washer - top arm shaft
each
29
Nut - top arm shaft
each
30
Rebound buffer, each

30
Poly rebound buffer, pair

31
Shaft - lower suspension arm
each
32
Bush - rubber (2 per arm)
each
32
Bush kit - polyurethane uprated (black or red)
kit
32
Bush set - nylon competition type
set
33
Nut - nyloc 3/8"UNF
each
35
Top Arm RH - suit dry suspension


More Information

More Information
SKU FAM2390A
Manufacturer Mini Sport
