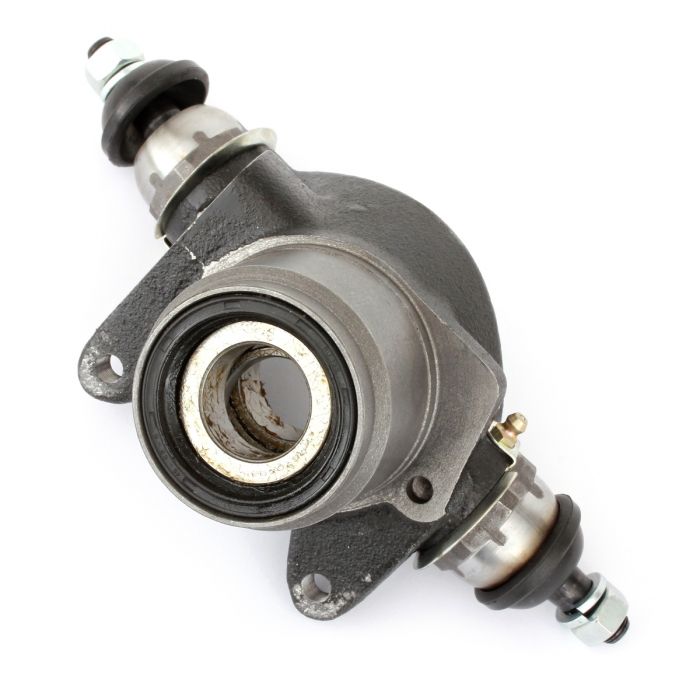

Fully Built Front Swivel Hub LH - Ready to Fit for Classic Mini Disc Models

Name: Fully Built Front Swivel Hub LH - Ready to Fit for Classic Mini Disc Models
SKU: FAM2391BUILT
Price: 173.580001 GBP
Availability: InStock

Be the first to review this product

Special Price £173.58 £144.65 Regular Price £182.71

In stock

SKU

FAM2391BUILT

Maximise the performance and safety of your classic Mini with our Fully Built Front Swivel Hub LH (FAM2391BUILT), expertly pre-assembled by the Mini Sport technical team. Tailored for all Mini models with disc brakes, this left-hand side hub is equipped with high-quality components, ensuring a perfect fit and seamless steering operation right from installation.

Right Hub = (FAM2390BUILT)

FAM2391BUILT Fully Built Front Swivel Hub LH for Classic Mini Disc Brake Models - Easy Install

Frequently Bought Together

Fully Built Front Swivel Hub LH - Ready to Fit for Classic Mini Disc Models
Special Price £173.58 £144.65 Regular Price £182.71
Fully Built Front Swivel Hub RH - Ready to Fit for Classic Mini Disc Models
Special Price £173.58 £144.65 Regular Price £182.71
Outer CV Joint - Mini Disc type 1984-01
Special Price £30.68 £25.57 Regular Price £32.40
Drive Flange for Mini with 8.4" Disc Brakes (1984-2001) - 21A2695
Special Price £30.01 £25.01 Regular Price £35.53
Split Collar for Mini CV Joint - Disc type 1984-01
Special Price £3.96 £3.30 Regular Price £4.14

Details

Presenting the Fully Built Front Swivel Hub LH for Classic Mini Disc Brake Models, a hallmark of Mini Sport's dedication to excellence and ease of installation. This left-hand hub is precisely assembled by our expert technicians to fit all classic Mini models with disc brakes, delivering enhanced steering response and reliability. Pre-installed with superior wheel bearings, seals, and ball joints, it provides a hassle-free upgrade or restoration solution, ensuring your Mini drives smoothly and safely.

This comprehensive assembly includes:

FAM2391: Left-hand swivel hub
GSJ166: High-quality Ball Joint Kit
GHK1140: Durable Wheel Bearings
BTA1326: Inner Wheel Bearing Seals
13H0106: Outer Wheel Bearing Seals

Designed for durability and optimal performance, this fully built hub is an ideal choice for Mini owners seeking a straightforward, quality-assured upgrade or restoration component. For a matching right-hand side hub, consider the Fully Built Front Swivel Hub RH (FAM2390BUILT). All parts are also available individually for those who prefer custom assembly.

If you're aiming to further enhance your Mini, explore our lightweight aluminium Mini hub kit (FAM2390AKIT) for a performance edge.

With Mini Sport, you're choosing the world's premier source for top-quality standard and uprated Mini suspension parts, trusted by enthusiasts for unparalleled quality and service.

Our dedicated team at Mini Sport is here to support your Mini's journey, from question and selection to installation and beyond. We pride ourselves on providing not just parts, but solutions that enhance the joy and performance of your classic Mini. Feel free to reach out for any assistance or advice on making the most of your Mini experience.

Find all related parts with our Easy Parts Finder

Mini front left hand swivel hub with wheel bearings and ball joints fitted. Fits all disc brake models of Mini.

The assembly includes:

FAM2391 - left hand swivel hub
GSJ166 - Ball Joint Kit
GHK1140 - Wheel bearings

The matching right hand hub is FAM2390BUILT. All components are availble seperately if you prefer to build it yourself.

Alternatively if you are looking to reduce the weight on your compettion Mini as much as possible, or just want to fit something a litle special, take a look at our state of the art, lightweight aluminium Mini hub kit. FAM2390AKIT.

Buy top quality standard and uprated Mini suspension parts from Mini Sport, the world's premier online Mini store!

Find all related parts with our Easy Parts Finder

No.	Description	Notes	Part No.
1	Standard rubber cone - front & rear		FAM3968
1	Competition rubber cone - front & rear		FAM3968C
1	Moulton Smootha Ride front cone		MSLA318490018
1	Moulton Smootha Ride rear cone		MSLA318490019
2	Aluminium front strut, each		21A530
2	Adjusta Ride front struts, pair		MSLMS0500
	Adjusta Ride full car kit		SUSKIT5
3	Knuckle joint - standard, each		21A1163
3	Knuckle joint - Adjusta Ride, each		MSLMS0502
4	Knuckle joint nylon cup, each		21A423
5	Genuine tie rod (inc bushes),	each	8G4249
5	Adjustable tie rods - thick, pair		C-8G4249
5	Group 'A' Adjustable tie rods, pair suitable for road, rally or race		MSLMS0512
5	Group 'A' rose jointed tie rods, pair suitable for tarmac rally or race		MSLMS0518
	Female Rose Joint 1/2" UNF, each		MSLRJF
	Teflon 1/2"UNF female rose joint		MSLRJFTEF
	Male Rose Joint 1/2" UNF, each		MSLRJM
	Teflon 1/2"UNF male rose joint		MSLRJMTEF
6	Bolt - tie rod to bottom arm,	each	53K1031
7	Spring Washer - 5/16" UNF Spring washer,	each	GFK1125
8	Nut - Nyloc 5/16'UNF	each	GFK3322
9	Standard rubber bushes	each	31G1155
9	Uprated rubber bushes	set 4	C-STR628
9	Poly bush kit (black or red)	set 4	SPDSP655
10	Washer - cup type, tie rod end	each	2A4328
11	Washer - flat, tie rod end	each	PWZ207
12	Nyloc nut - 7/16"UNF tie rod	each	GFK3324
13	Shock Absorbers	each or kits	Shop All
13a	Rubber eyelet bush (with insert),	each	SPABB10
14	Top standard mount, LH,	each	21A474
14	Top standard mount, RH,	each	21A471
14	Top competition mount, RH,	each	C-AJJ3360
14	Top competition mount, LH,	each	C-AJJ3359
15	Set Screw - 1/4" UNF x 3/4"	each	GFK5179
16	Spring Washer - 1/4"	each	GFK1113
17	Front Shock Absorber Bottom Mount,	each	2A4337
17	Lower competition pin	each	C-AJJ3361
18	Nut - Nyloc 3/8"UNF shocker mount	each	GFK3323
19	Bump Stop - rubber twin bolt	each	2A4332
19	Bump Stop - rubber single bolt	each	FAM2764
19	Bump Stop - rubber hydrolastic type	each	21A1598
19	Bump Stop - rubber single bolt - early MK1	each	ACA9671
19	Bump Stop - poly single bolt	pair	SPDSP450E
19	Bump Stop - poly twin bolt	pair	SPDSP451
20	Nut - 1/4" UNF		GFK3211
20	Nut - nyloc 1/4"UNF		GFK3321
21	Spring Washer - 1/4"		GFK1124
21	Washer - flat 1/4Ó		GFK1113
22	Repair kit, all parts to service 1 x top arm		VPS6
23	Top arm shaft	each	2A4325
24	Sealing Ring bush - top arm shaft	each	2A7327
25	Thrust washer - top arm shaft	each	2A7324
26	Thrust collar - top arm shaft	each	2A4326
27	Retaining plate - top arm shaft	each	2A4327
28	Spring washer - top arm shaft	each	MSLMS0046
29	Nut - top arm shaft	each	MSLMS0045
30	Rebound buffer, each		2A4267
30	Poly rebound buffer, pair		SPDSP681FR
31	Shaft - lower suspension arm	each	2A4362
32	Bush - rubber (2 per arm)	each	21A1882
32	Bush kit - polyurethane uprated (black or red)	kit	SPDSP657
32	Bush set - nylon competition type	set	MSLMS0528
33	Nut - nyloc 3/8"UNF	each	GFK3323
35	Top Arm RH - suit dry suspension		21A2690

More Information

More Information
SKU	FAM2391BUILT
Manufacturer	Mini Sport

No.	Description	Notes	Part No.
35	Top Arm RH - suit dry suspension		21A2690
35	Top Arm LH - suit dry suspension		21A2691
36	Grease Nipple - angled		UHN445
37	Disc type - LH standard cast		FAM2391
37	Left Side Built Swivel Hub - Complete and ready to fit. Comes with ball joints, wheel bearings and seals.		FAM2391BUILT
38	Disc type - RH standard cast		FAM2390
38	Right Side Built Swivel Hub - Complete and ready to fit. Comes with ball joints, wheel bearings and seals.		FAM2390BUILT
37/38	Pair Alloy Billet Swivel Hubs, suit 8.4Ó disc all Mini models 1984 onwards.		FAM2390A
39	Right Side Standard Lower Arm		21A1879
39	Fixed 1.5ûnegative camber, pair - road application		MSLMS0523
39	Fixed 2.0û negative camber, pair - road application		MSLMS0523-2
39	Rose Jointed for adjustable camber, pair - race or rally	NLA	MSLMS0514
40	Left Side Standard Lower Arm		21A1881
40	Heavy duty fully adustable, pair - fast road or competition		SPDSP431A
40	Heavy duty rose jointed fully adjustable pair - race or rally		SPDSP431HD
41	Mini Ball Joint Kit - GENUINE		GSJ166OE
41	Mini Ball Joint Kit - Original Equipement specification		GSJ166
41	Metro Ball Joint Kit - for use with Mini Sport Alloy swivel hubs, sold as each.		QSJ1059S
42	Rubber Boot - balljoint - each		BTA377
43	Shims - balljoint - per side		VPS145/SHIMKIT
44	RH genuine steering arm, each		BTA896
44	RH steering arm - Cooper S, each		BTA894
45	LH genuine steering arm, each		BTA897
45	LH steering arm - Cooper S, each		BTA895
46	Locating Dowel for steering arm, each (2 required per arm)		FAM6924
47	Lock Tab for steering arm, each		2K5377
48	Steering Arm Bolt 3/8Ó UNF x 1 3/4Ó, each		2A4315
49	Grease Nipple - straight	each	LN10051
