SKU
GFE443

Mini Oil Filter - Spin on type 1970-96

Special Price £4.78 £3.98 Regular Price £5.83
In stock
SKU
GFE443

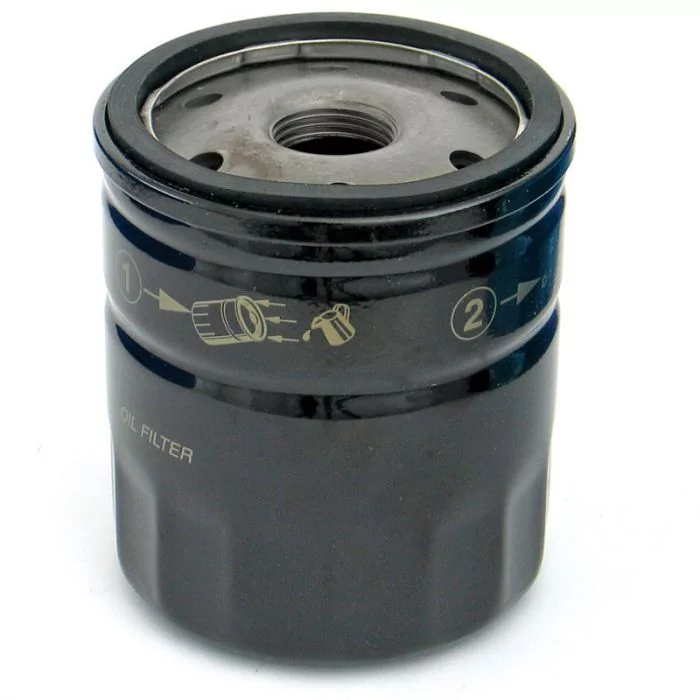

Mini spin on type oil filter for A and A+ engines up to 1996.

Fits all 1970-1996 Minis plus many MG and Triumph models.

NOTE: Oil filter measures 76.2mm in diameter and is 85mm in height, thread is 3/4″-16 UNF.

Details

Spin on type oil filter for A and A+ engines with spin on filters, up to 1996.

Fits all 1970-1996 Minis plus many MG and Triumph models.

- Mini MPI Oilt Filter - 1997 onwards please use CDU1268

Applications

Austin Mini 850, 998, 1275GT (1967-1996)
Austin Metro 1.0, 1.3 (1980-1990)
MG Metro 1.3 (1982-1990)
Austin / Morris 1100, 1300, 1300GT (1962-1974)
MG 1100, 1300 (1962-1973)
Wolseley 1100, 1300 (1965-1973)
Riley Kestrel 1100, 1300 (1962-1969)
Austin A35, A40 (1956-1967)
Austin Maxi 1500, 1750 (1969-1981)

NOTE: Oli filter measures 76.2mm in diameter and is 85mm in height, thread is 3/4″-16 UNF.



Please note, image is for illustration purposes only - the Oil Filter you recieve may differ in appearance.

Find all related parts with our Easy Parts Finder



No.
Description
Notes
Part No.
1
Oil Filter Head - spin on type

2
Oil Filter - Mk1 - paper type


Oil Filter - Automatic to '96

2
Oil Filter - all models including SPi

2
Oil Filter - MPi/MPi auto only

2
MPi oil cooler filter

3
Flange Bolt - filter head to crankcase


Stud - Oil Filter Head


Nut - Filter Head


Washer - Filter Head


Spring Washer

4
Gasket - Oil Filter head to cylinder block - early

4
Gasket - Oil Filter head to cylinder block - late

5
Pipe - oil filter to crankcase aeroquip
pre '90
6
Screw - banjo union

7
Copper Washer

8
Connector-oil pipe

8
Connector-oil pipe

9
Pipe - oil filter to crankcase
'90 on
9
Pipe - oil filter to crankcase

10
Tube Nut - pipe

11
Rubber Seal - pipe

12
Pipe - oil filter - gearbox to crankcase - Automatic

13
Adaptor-pipe to gearbox
NLA
DAM7601
14
'O' Ring - Automatic

15
Oil Pump - 2 bolt 1275cc A+
Slot Drive
15
Oil Pump - high capacity
Slot Drive
15
Oil Pump - 850cc, 998cc, 1098cc
Peg Drive
15
Oil Pump - 1275cc
Spider Drive
15
Oil Pump - 3 bolt 998cc A+
Slot Drive
16
Gasket-oil pump

17
Flange Bolt - pump to crankcase 1/4" UNF x 1 1/2"

17
Bolt - pump to crankcase 1/4" UNF x 1 3/4"


Spring Washer

18
Oil Pump - Automatic
NLA
GLP107
19
Screw - allen - pump to crankcase
NLA
12A1254
20
Pipe-oil outlet - Automatic

21
'O' Ring - Automatic

22
Block - outlet pipe - Automatic
NLA
22A1187
23
'O' Ring-internal - Automatic

24
Valve - oil release

25
Spring - oil release valve


Oil Pressure release valve
KIT
26
Copper Washer - release valve

27
Release valve cap nut

28
Oil Dip stick
pre '97
28
Oil Dip stick
'97 on

Oil Dip stick CHROME - Blue, Red or Polished top


Oil Dip stick - Automatic


Oil Pressure Switch

29
Oil Pressure Switch
MPi

More Information

More Information
SKU GFE443
Manufacturer OE Spec
Cross Reference Product Codes GFE166, WL7098, MSF166, FT4531A, BFO4077
