Clutch Master Cylinder Repair Kit - Mini pre 1985

Name: Clutch Master Cylinder Repair Kit - Mini pre 1985
SKU: GRK3007
Price: 14.904001 GBP
Availability: InStock

Special Price £14.90 £12.42 Regular Price £15.36

In stock

SKU

GRK3007

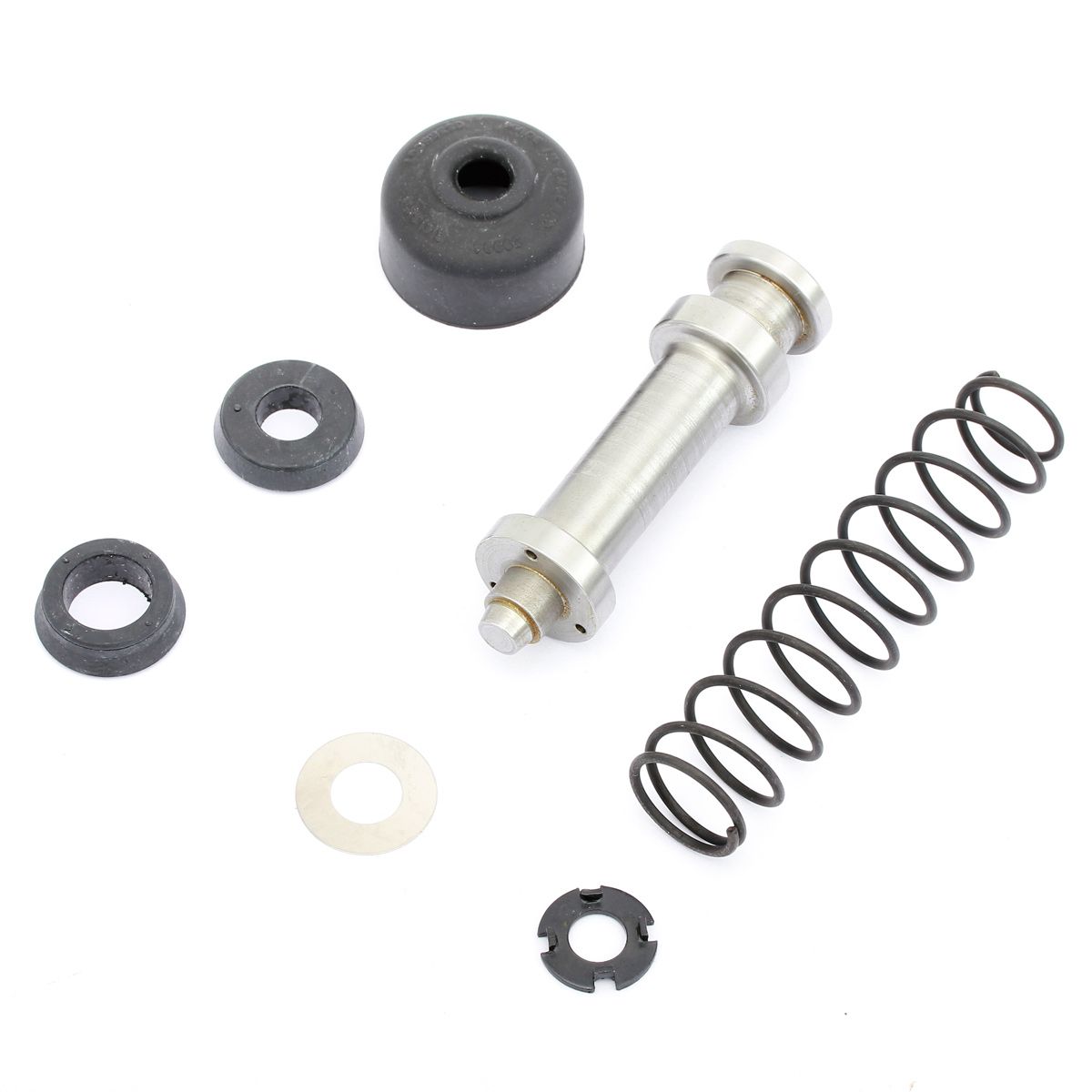

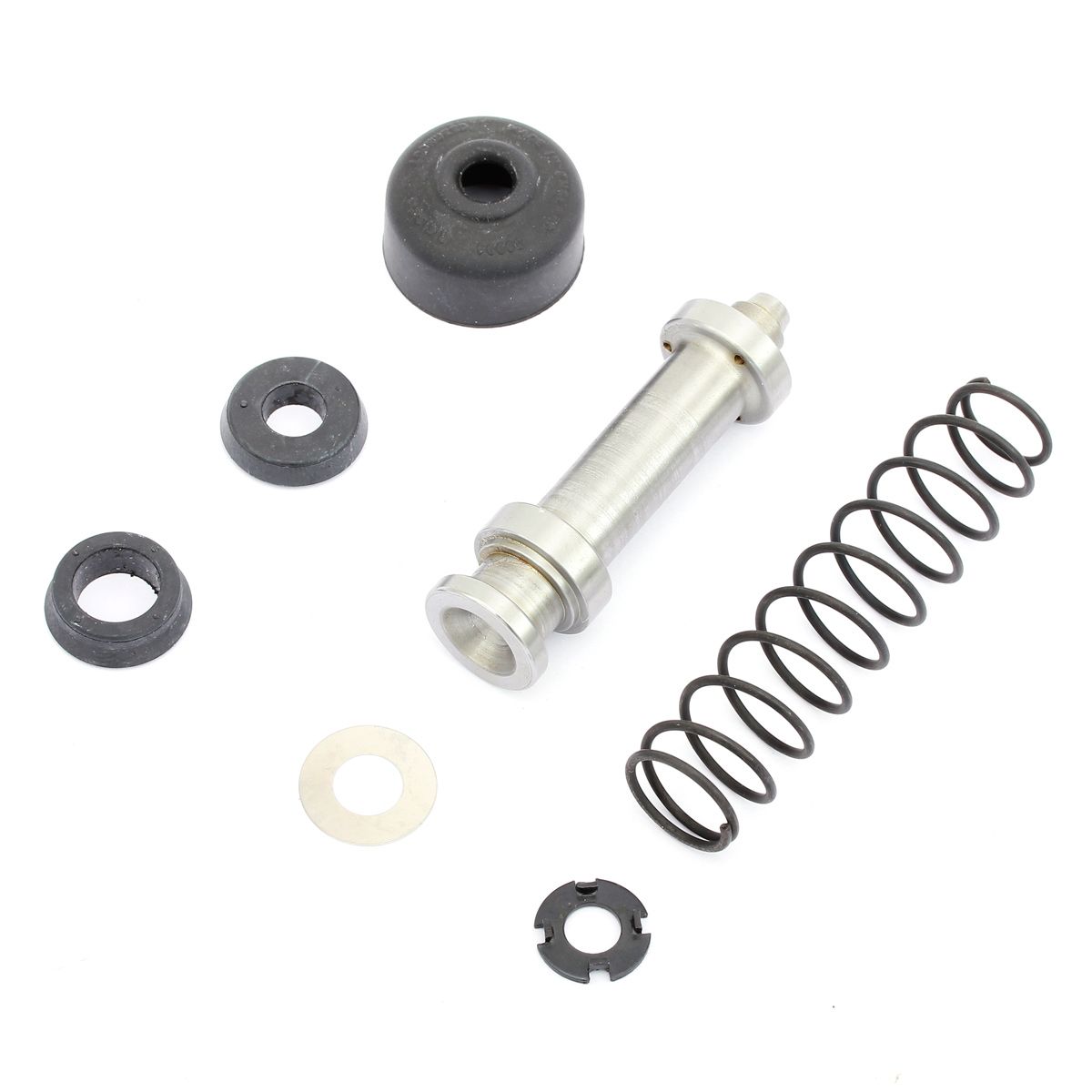

Mini clutch master cylinder repair kit for early cup and seal cylinders.

Frequently Bought Together

Clutch Master Cylinder Repair Kit - Mini pre 1985
Special Price £14.90 £12.42 Regular Price £15.36
Brake and clutch master cylinder mounting gasket
Special Price £1.30 £1.08 Regular Price £1.34
Genuine Moulton Smootha Ride Rear Suspension Cone
£69.42 £57.85
Clutch Seal Repair Kit for Verto Slave Cylinder - GSY118 1982-2001
Special Price £15.67 £13.06 Regular Price £16.16
Mini Brake Master Cylinder Repair Kit for GMC195
Special Price £28.85 £24.04 Regular Price £30.60

Details

Full rubber seal repair kit for the pre 1985 clutch master cylinder.

This kit converts the cup and seal system used on early master cylinders to the 2 ring seal system used from 1985 onwards.

Master cylinders from 1985 onwards which already have 2 ring seals use the GRK3004 repair kit.

No.

Description

Notes

Part No.

1	Pedal Assembly - Clutch - RHD		NAM3116
	Pedal Assembly - Clutch - LHD		NAM3115
2	Bush		2A3034
3	Bracket - Brake and Clutch - RHD	'88-'96	SKU10043
	Bracket - Brake and Clutch - LHD	carb '88-'94	SKU10040
	Bracket - Brake and Clutch - LHD	injection '91-'96	SKU10042
3	Bracket - Brake and Clutch - RHD	MPi '96on	SKU101220
	Bracket - Brake and Clutch - LHD	MPi '96on	SKU101210
4	Set Screw - mounting bracket		SH605051
5	Spring Washer - mounting bracket		GHF332
6	Pedal Rubber Pad - early		GPR105A
6	Pedal Rubber Pad -		GPR107A
6	Pedal Rubber Pad -		SZU10001
7	Shaft - Clutch And Brake Pedal		2A5880
8	Nut - Nyloc - pedal shaft		GFK3322
9	Pin - Clevis		CLZ512
10	Spring - Pedal Return	'59-'88	2A5652
	Spring - Pedal Return - RHD	'89on	NAM8544
	Spring - Pedal Return - LHD	'89on	NAM8547
11	Master cylinder - early metal tank type		AAU4969
11	Master cylinder - late plastic tank type		STC100330
12	Filler Cap		513123A
14	Kit Repair - master cylinder (2 ring type)		GRK3004
	Kit Repair - master cylinder (1 ring and cup type)		GRK3007
15	Sealing Washer		31G279
16	Copper Pipe 27.94cm (11") Long - RHD		ACP455
16	Copper Pipe 86cm (34") Long - LHD		ACP456
17	Rubber clutch hose - pre verto		GVP1020
18	Rubber clutch hose - verto		GVP1009
19	Bolt - Banjo - Hose To Slave Cylinder		C5192A
20	Copper Washer - Banjo Bolt To Banjo		3H550
21	Copper Washer - Banjo To Slave Cylinder		233220A
23	Washer - Plain - Clutch Hose To Dash		WB116101
24	Nut - Lock - Tubenut		2K8686
25	Washer - Lock - Tube - Nut		WE600101

More Information
SKU	GRK3007
Manufacturer	OE Spec
Cross Reference Product Codes	GRK3007
