Rear Wheel Cylinder - Mini 1275GT 1976-77

Name: Rear Wheel Cylinder - Mini 1275GT 1976-77
SKU: GWC1126
Price: 10.164001 GBP
Availability: InStock

Be the first to review this product

Special Price £10.16 £8.47 Regular Price £12.10

Sorry, out of stock Please Order Back in stock soon!

SKU

GWC1126

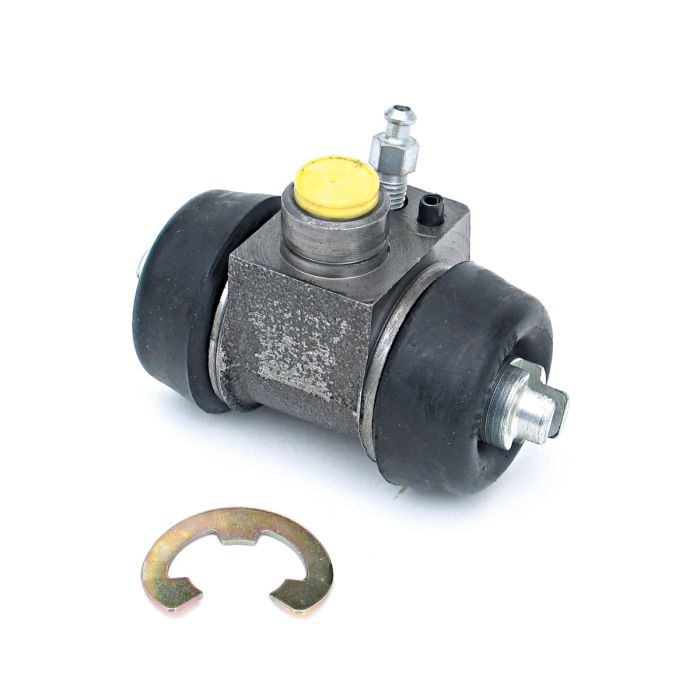

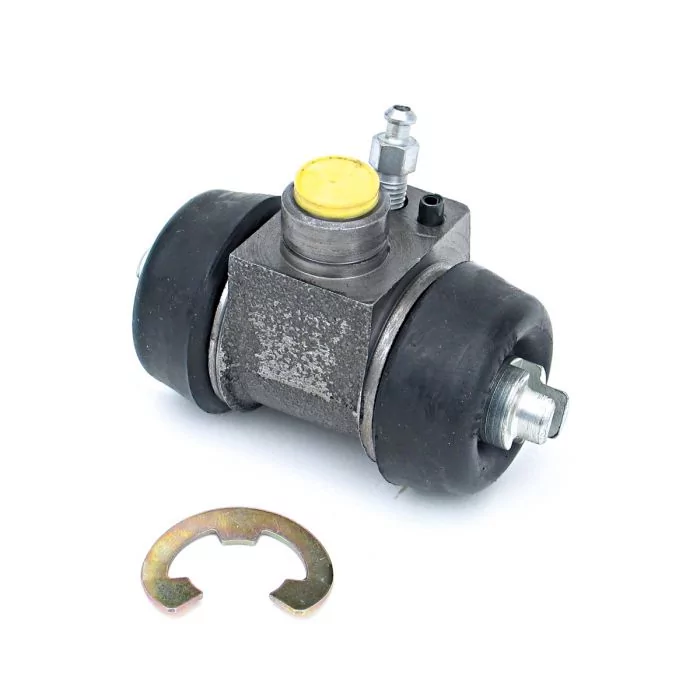

1/2" (12.7mm) bore rear wheel cylinder for Mini 1275GT 1976-77.

Rear Wheel Cylinder - Mini 1275GT 1976-77

Frequently Bought Together

Rear Wheel Cylinder - Mini 1275GT 1976-77
Special Price £10.16 £8.47 Regular Price £12.10
Alternator Adjusting Bracket Mini A plus - Plated
Special Price £7.46 £6.22 Regular Price £8.75
Retaining Clip - Mini Rear wheel cylinder
Special Price £0.46 £0.38 Regular Price £0.56
Facet Road Fuel Pump Kit - Interrupter
Special Price £145.68 £121.40 Regular Price £163.20
Chrome De-Luxe Side Trim for Classic Mini
Special Price £17.30 £14.42 Regular Price £19.70

Details

Mini rear wheel cylinder with 1/2" (12.7mm) bore. This cylinder had the smallest bore size used on the Mini and is the most uncommon. It was fitted only to the 1976/77 1275GT and to export 1976/77 MK3 Mini's with split diagonal brake systems.

Although they are sold individually we would recommend changing both rear wheel cylinders at the same time.

Please check the bore size of the cylinders required before ordering.

If you are replacing the Mini rear wheel cylinders you may also need,

21A1058 - Right hand rear drum brake back plate
21A1060 - Left hand rear drum brake back plate
17H7620 - Rear drum brake adjuster kit
GBS834AF - Rear brake shoes
GBK1834 - Brake shoe return spring kit
17H7612 - Handbrake lever boot

Alternatively the rear back plates are available as a ready to fit assembled pair, see MS2690.

Buy top quality Classic Mini brake spares and parts from Mini Sport, the worlds premier online Mini Store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

0	Rear - Built and ready to fit,	pair	MS2690
	Rear - as above with Mintex shoes,	pair	MS2690MIN
	Front - Built and ready to fit,	pair	MS2693
1	Back Plate Rear	right side	21A1058
	Back Plate Rear	left side	21A1060
2	Handbrake cable bracket	right side	21A1669
2	ST Handbrake cable protection bracket	left side	C-AHT213
2	ST Handbrake cable protection bracket	right side	C-AHT212
	Handbrake cable bracket	left side	21A1670
3	Spacer Washer - packing		GFK1114
4	Bolt 5/16" UNF - for back plate		GFK5185
5	Spring Washer - for back plate bolt		GFK1125
6	Nut 5/16" UNF - for back plate bolt		GHF201
7	Standard Rear Brake Shoes		GBS834AF
7	Mintex Standard Rear Brake Shoes		GBS834MIN
7	Mintex Rally / Race Rear Brake Shoes		MLR5M20
8	Rear adjuster screw & wedge kit		17H7620
9	Rear - Lower spring (spring each end),each		17H8092
9	Rear Brake Shoe Return Spring Kit - set 4		GBK1834
10	Rear - Upper spring (mid spring), each		17H7621
11	Handbrake lever set, pair		SMN10005
12	Rubber boot for handbrake lever, each		17H7612
13	Rear wheel cylinder locating gasket, each		37H4642
0	(19.0mm) - Cooper S/GT - Mk2 '67 on		GWC1102
	(15.9mm) - 850cc '59-'66 / 1275cc '69-'74		GWC1101
14	(17.5mm) - 1275GT '69 to '71 with 7.5'' discs		GWC1129
14	(14.3mm) - 850/998cc - '74 to '78		GWC1131
14	(12.7mm) - 1275GT - '74 to '78		GWC1126
	(19.0mm) - Genuine Rover Mini 1990 on	NLA	17H8152EVA
0	suit GWC101, each		GRK2013
15	suit GWC1102, each		GRK2014
	suit GWC1131/GWC1134, each		GRK2003
15	suit GWC1129, each		GRK2004
	suit GWC1126, each		BHM7015
16	Rear Wheel Cylinder Bleed Screw		513118A
	Blanking Plug - rear back plate		AEU1541A
17	Brake Drum, Standard type	front or rear, each	GDB105
17	EBC Brake Drum, Standard type	front or rear, each	EBCDM019
17	Brake Drum, Spacer type	'84 on rear, each	GDB106
17	Superfin Drum, Spacer type	'84 on rear, each	MSLMS0507
	Superfins with Backplate Kit	'84 on rear, set	MSLMS0507KIT2
18	Brake drum screw - standard drum type, each		CMZ407
18	Brake drum screw - spacer type drum, each		CMZ422
19	Rear wheel cylinder locating clip, each		17H7949

More Information

More Information
SKU	GWC1126
Manufacturer	OE Spec
Cross Reference Product Codes	GWC1126
