Motorsport Rear Subframe Kit

Name: Motorsport Rear Subframe Kit
SKU: 40-10-007MS-KIT
Price: 387.756001 GBP
Availability: InStock

Be the first to review this product

Special Price £387.76 £323.13 Regular Price £433.99

Sorry, out of stock Please Order Back in stock soon!

SKU

40-10-007MS-KIT

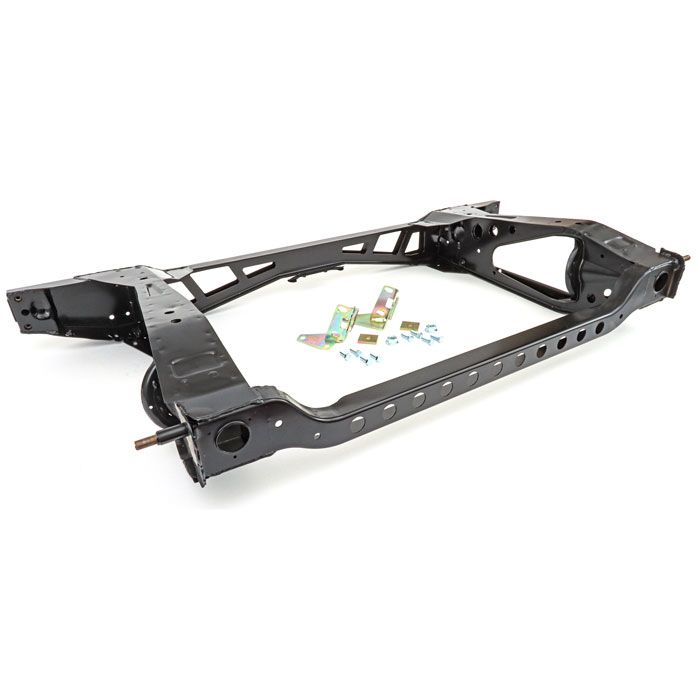

Mini motorsport rear subframe for all dry suspension models up to 1991.

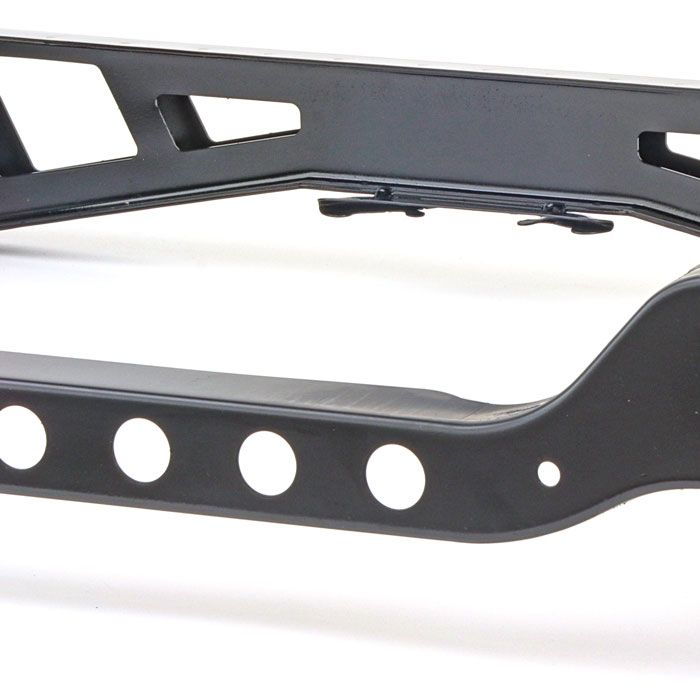

This ultra lightweight and strengthened subframe comes ready to fit with no modifications required, plus finished in black powder coating for extra protection from rust and corrosion.

Comes complete with adjustable camber and tracking brackets.

Mini adjustable rear brackets and motorsport subframe

Details

A motorsport rear subframe for all dry suspension Minis up to 1991, super strong and lightweight, perfect for competition use, race, rally and sprint.

The full kits comes complete with a motorsport rear subframe and negative camber and tracking brackets to fit directly to the rear of your Mini with no modifications required

For the genuine alternative please see part number FAM6292.

Buy top quality Classic Mini subframes and suspension parts from Mini Sport, the premier online mini store!

Find all related parts with our Easy Parts Finder

No.

Description

Notes

Part No.

1	All (Hydrolastic) wet suspension models		21A2160	Qty
1	'59-'91 dry suspension models - no exhaust hangers		FAM6292	Qty
1	'92-'97 models with exhaust hangers		KHB10023	Qty
1	Sportspack '97-'01		KHB100590	Qty
1	Automatic Subframe assembly - '92-'97		KHB10024	Qty
1	KHB10024 including trunnions & bushes (as pic)		KHB10026	Out of stock
	Genuine - Mk4 built up and ready to fit		HMP241002	Qty
1	'59-'91 dry suspension models - no exhaust hangers		40-10-007	Out of stock
1	'59-'91 models - no exhaust hangers powder coated		40-10-007PC	Qty
1	'91-'97 dry suspension models - with exhaust hangers		40-10-008	Out of stock
1	'91-'97 models - exhaust hangers powder coated		40-10-008PC	Qty
1	All (Hydrolastic) wet suspension models)		40-10-006	Qty
2	RH radius arm/subframe bracket, each		21A195	Qty
3	LH radius arm/subframe bracket, each		21A197	Qty
7	Rear subframe fitting kit (as pic)		HMP841014	Qty
8	Rear trunnion pin, each		21A1440	Qty
9	Rear mounting bush, late, each		21A2560	Qty
9	Poly bush kit - late (red or black)		SPDSP664A	Qty
9	Nylon bush kit - late		MSLMS0531	Qty
10	Rear mounting bush - early, each		2A5818	Qty
10	Poly bush kit - early (red or black)		SPDSP662A	Qty
10	Nylon bush kit - early		MSLMS0532	Out of stock
11	Spring washer	each	GFK1125	Qty
12	Long trunnion bolt	each	SH605181	Qty
12	Short trunnion bolt	each	GFK5185	Qty
13	Nyloc nut	each	GFK3323
14	Washer	each	PWZ207	Qty
15	Washer - 5/16"	each	GFK1114	Qty
16	Nut - 5/16" UNF	each	GFK3322	Qty
17	Set Screw - trunnion 5/16" UNF	each	BH605201	Qty
18	Trunnion (rectangle), each		21A2558
19	Trunnion (step), each		2A5819	Qty

</div>

More Information

More Information
SKU	40-10-007MS-KIT
Manufacturer	Magnum
Body Panels	Rear, Subframes
